제품 상세 정보:
|
| 예어: | LED UV 경화 시스템 | 힘: | 1200W |
|---|---|---|---|
| 입력 전압: | AC85-265V | 파장: | 395nm |
| 냉각 방법: | 수냉 | UV 강도: | 18W/CM2 |
| 보증: | 2 년 | 패키지: | 나무 케이스 |
| 강조하다: | UV LED curing system 395nm,water cooling UV ink curing,LED UV curing system for ink |
||

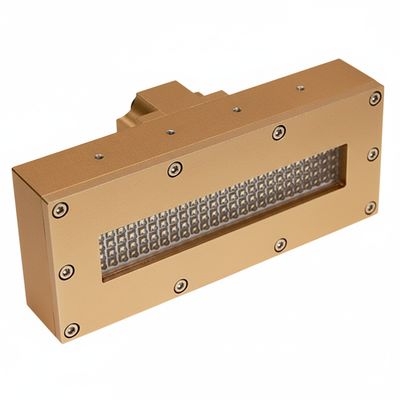

Ultraviolet LED Light System Offset Printing UV LED Curing System 395nm
LED UV Curing System Description
" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .
LED UV Curing System Datasheet
|
Model
|
CG-CT3-40027-1200A | lamp color |
Rose golden |
|
Power |
1200W |
Chip brand |
LG/Seoul |
|
Input voltage |
AC85-265V |
Wave length |
365/385/395/405nm |
|
Application |
UV ink/vanish/coating /adhesive curing |
Life span |
20000H |
|
Cooling way |
Water cooling |
Emitting window size |
customized |
|
UV intensity |
18W/CM2 |
Dimmable |
0%-100% |
|
Best emitting distance |
30-50mm | Package | wooden case |
LED UV Curing System Advantages
LED UV Curing System FAQ:
Q1: What’s the material of lamp and lens ?
A1: Aluminium /quartz
Q2: What’s the cooling way for the leduv curing system ?
A2: Water or air cooling
Q3: What’s the lifespan of the uvled curing lamp ?
A3: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
