제품 상세 정보:
|
| 예어: | UV 드라이어 기계 | 힘: | 300W |
|---|---|---|---|
| 입력 전압: | AC85-265V | 파장: | 365nm |
| 냉각 방법: | 공기 냉각 | UV 강도: | 2W/cm2 |
| 보증: | 1 세 | 패키지: | 나무 케이스 |
| 강조하다: | dimmable UV curing unit 395nm,air cooling LED UV dryer,resin UV curing machine AC220V |
||

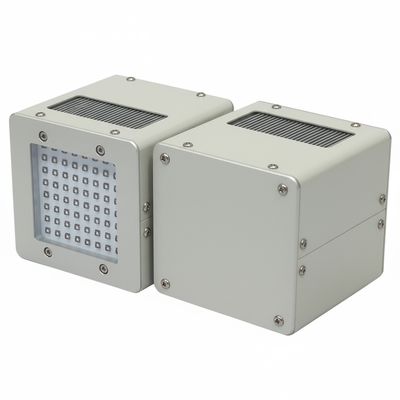

AC220V 395NM Dimmable Air Cooling Leduv Curing Unit For Resin
UV Dryer Machine Description
UV LED Curing technology is currently the most high-performing and fastest method of ultraviolet radiation curing available on the market. Specifically engineered for the rapid drying and hardening of UV-compatible materials—such as inks, coatings, and adhesives—it has become the preferred choice for industries seeking highly efficient production and superior curing results.
UV Dryer Machine Datasheet
|
Model
|
CG-FL-100*100-300A/C | lamp color |
White/black |
|
Power |
300W |
Chip brand |
LG/Seoul |
|
Input voltage |
AC85-265V |
Wave length |
365/385/395/405nm |
|
Application |
UV ink/vanish/coating /adhesive curing |
Life span |
20000H |
|
Cooling way |
Air cooling |
Emitting window size |
100*100mm |
|
UV intensity |
2W/CM2 |
Dimmable |
0%-100% |
|
Best emitting distance |
30-50mm | Package | wooden case |
UV Dryer Machine Advantages
UV Dryer Machine FAQ:
Q1: What’s the wavelength of the leduv lamp ?
A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.
Q2: What’s your led brand ?
A2:LG/Seoul
Q3: What’s the material of lamp and lens ?
A3: Aluminium /quartz
Q4: What’s the cooling way for the leduv curing system ?
A4: Water or air cooling
Q5: The uv intensity can be change?
A5: Yes, the uv intensity is changeable from 0%-100%
Q6: What’s the max energy of uvled lamp ?
A6: It’s depend on emitting time , the longer the higher energy output total amount.
Q7: What’s the lifespan of the uvled curing lamp ?
A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
