제품 상세 정보:
|
| 예어: | UV LED 경화 장비 | 힘: | 600W |
|---|---|---|---|
| 입력 전압: | AC85-265V | 파장: | 395nm 385nm |
| 냉각 방법: | 수냉 | UV 강도: | 18W/CM2 |
| 보증: | 2 년 | 패키지: | 나무 케이스 |
| 강조하다: | ozone free UV curing system,environment friendly UV curing equipment,UV LED curing equipment with warranty |
||

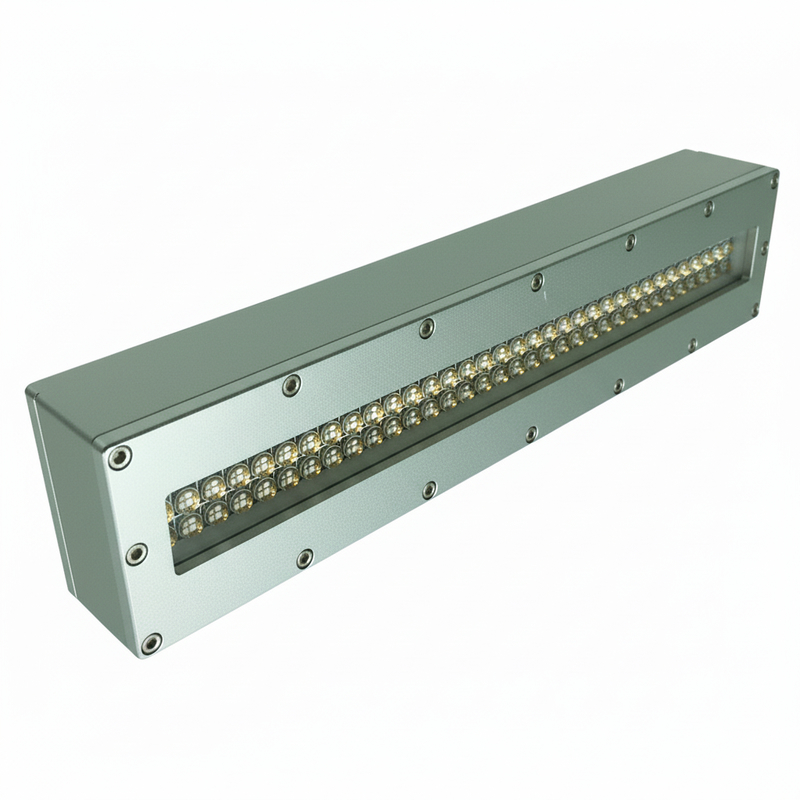

Environment Friendly Uv Led Curing Lamp With Ozone Free UV Curing System
UV LED Curing Equipment Description
A UV-LED curing lamp is a high-performance light source specifically designed for UV curing applications. It emits high-intensity ultraviolet light, ensuring that UV-sensitive materials (including resins, inks, varnishes, adhesives, and coatings) are fully dried and perfectly cured in a very short time. This technology provides a fast, reliable, and stable curing solution for users across various industries, such as printing, electronics, medical, and woodworking.
UV LED Curing Equipment Datasheet
|
Model
|
CG-CT3-26027-600A | lamp color |
Rose golden |
|
Power |
600W |
Chip brand |
LG/Seoul |
|
Input voltage |
AC85-265V |
Wave length |
365/385/395/405nm |
|
Application |
UV ink/vanish/coating /adhesive curing |
Life span |
20000H |
|
Cooling way |
Water cooling |
Emitting window size |
customized |
|
UV intensity |
18W/CM2 | Dimmable | 0%-100% |
|
Best emitting distance |
30-50mm | Package | wooden case |
UV LED Curing Equipment Advantages
UV LED Curing Equipment FAQ:
Q1: What’s the wavelength of the leduv lamp ?
A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.
Q2: What’s your led brand ?
A2:LG/Seoul
Q3: What’s the material of lamp and lens ?
A3: Aluminium /quartz
Q4: What’s the cooling way for the leduv curing system ?
A4: Water or air cooling
Q5: The uv intensity can be change?
A5: Yes, the uv intensity is changeable from 0%-100%
Q6: What’s the max energy of uvled lamp ?
A6: It’s depend on emitting time , the longer the higher energy output total amount.
Q7: What’s the lifespan of the uvled curing lamp ?
A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
