제품 상세 정보:
|
| 제어 방법: | PLC/스위치 신호/레벨 | 보증: | 1년 |
|---|---|---|---|
| 파장: | 365/385/395/405NM (선택 사항) | 애플리케이션: | 정밀 경화 |
| 강조하다: | UV glue curing lamp,optical lens UV glue curing lamp,micro spot UV glue curing lamp |
||
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Light Source | UV LED | Wavelength | 365nm / 385nm / 395nm / 405nm |
| Control Channels | 1-4 Independent Channels | Output Intensity | Adjustable |
| Operation Mode | Continuous / Timer | Cooling Method | Air Cooling |
| Control Interface | LCD Display | Input Voltage | AC 100-240V, 50/60Hz |
| LED Lifetime | >20,000 Hours | External Control | PLC / I/O Trigger |

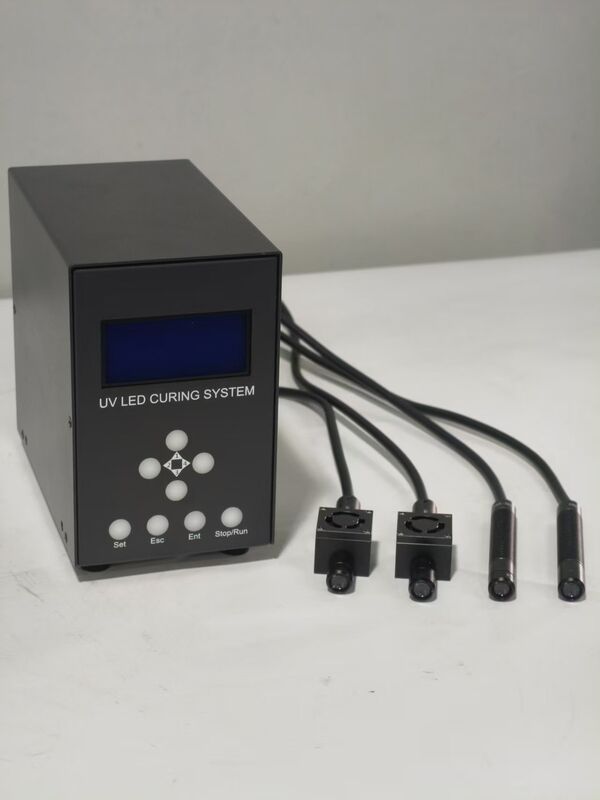

Q1: What is a UV LED Spot curing system?
A1: UV LED Spot curing system is a precision curing device that delivers concentrated UV light through a small spot, ideal for curing UV adhesives, coatings, and encapsulants in electronics, medical devices, and optical assemblies.
Q2: What wavelengths are available for UV LED point light sources?
A2: Common wavelengths include 365nm, 385nm, 395nm, and 405nm. The best wavelength depends on the UV adhesive, coating, or ink being used.
Q3: What industries use UV LED Spot curing systems?
A3: UV LED Spot curing systems are widely used in electronics manufacturing, medical device assembly, semiconductor packaging, optical bonding, and laboratory research.
Q4: Can the UV intensity be adjusted?
A4: Yes. The UV intensity and exposure time can be independently adjusted to meet different curing process requirements.
